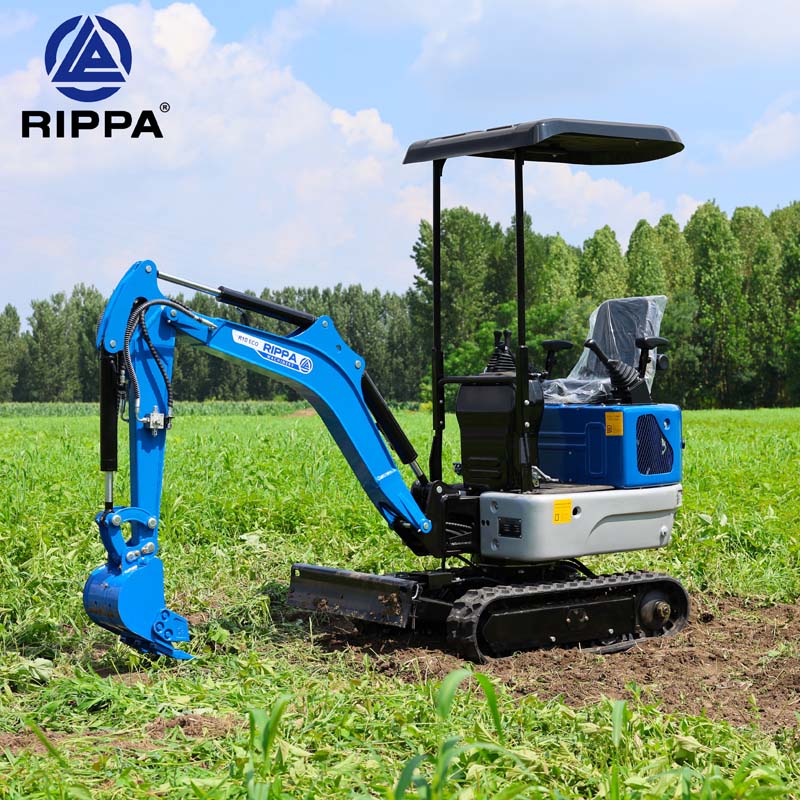

1 Ton Mini Excavator
Product advantages:
ODM，OEM，Can be customized
The excavators are CE marked throughout the entire range.
Product Certificate: CE/ISO/EURO5/EPA/SGS/ECM
Small excavators meet Euro 5 and EPA emission standards.
Wholesale orders are available at discounted prices.
Manufacturers have stocks and provide fast delivery.
Customer support staff are available online 24 hours a day.
Fill out the information, get offers, become our agent!
The one-ton excavator is rippa's best-selling model. It is equipped with a vertical motor that is both economical and powerful. It can be used in various scenarios and is also very popular in Russia.
Functions
The one-ton mini excavator has a large lifting capacity and digging range, making work more efficient.
The bucket capacity has been greatly increased, greatly improving excavation efficiency.
Equipped with an easily removable roof, suitable for working in small spaces.
The pilot operating system is used to ensure smooth operation, energy saving and high efficiency.
The chassis structure has been optimized and engineered to effectively reduce stress points and improve equipment durability and stability.
The new thickened tracks are wear-resistant, pressure-resistant and anti-slip, and can meet various operating needs.
The inside of the protective cover is made of new fiberglass, which reduces machine noise and reduces thermal conductivity.

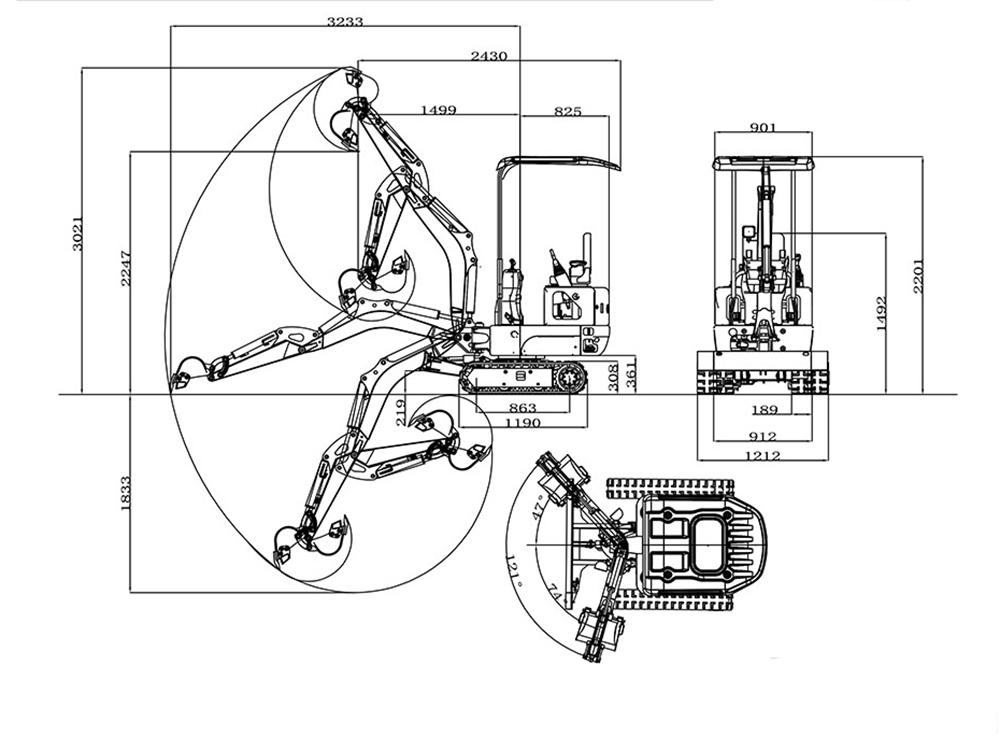

Product Envelope Table
EXCELLENT BASIC FEATURES
1.LIGONG ENGINE
Powerful performance in a compact design. The excellent performance provided by the additional torque greatly contributes to improved performance. At the same time, low fuel consumption, low vibration, low noise and environmental friendliness have been achieved at a high level.
2.NEW LOOK, NEW MATERIAL (FRP)
Lightweight and highly durable
Preservative
Good electrical characteristics
Good thermal performance
3.FULL RANGE OF CE STANDARDS
Hydraulic electronic lock
Pipe
Oil level indicator
Voltage indicator
Car pressure warning
4. OIL LINE
Newly upgraded oil pipe direction, all oil pipes are inside the boom. The oil line is not easy to damage and has a longer service life.
Product Parameters
Parameter |
Meaning |
Operating weight (kg) |
916 |
Bucket volume (m³) |
0.014 |
Travel speed (km/h) |
0-1.8 |
Elevation Angle (%) |
58 |
Bucket digging force (kN) |
9.6 |
Motor power (kW/rpm) |
7.5/3000 |
Total shipping length (mm) |
2200 |
Overall transport height (mm) |
2275 |
Maximum digging height (mm) |
2490 |
Maximum digging depth (mm) |
1400 |
Maximum vertical digging depth (mm) |
1300 |
Maximum digging radius (mm) |
2400 |
Minimum turning radius (mm) |
1190 |
Rear turning radius (mm) |
2255 |
Chassis width (mm) |
912.5/917 |
Track width (mm) |
180 |
Chassis clearance (mm) |
380 |
Bucket Width (mm) |
425 |
Rotation speed (rpm) |
12.5 |
Counterweight clearance (mm) |
377 |
Maximum unloading height (mm) |
1477 |
Boom length (mm) |
900/1200 |
Engine make |
Koop |
Engine model |
192F |

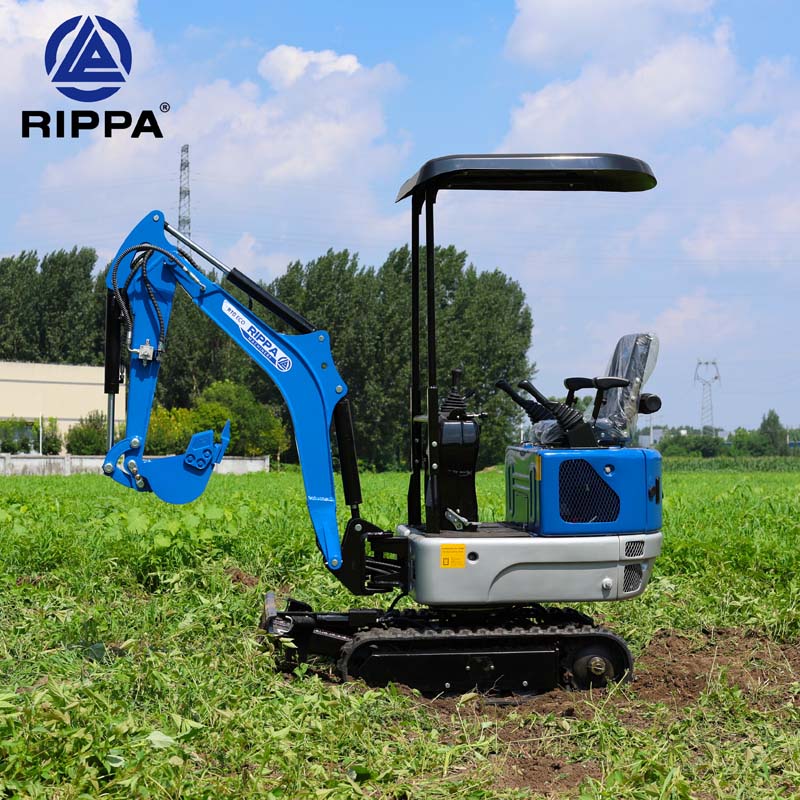

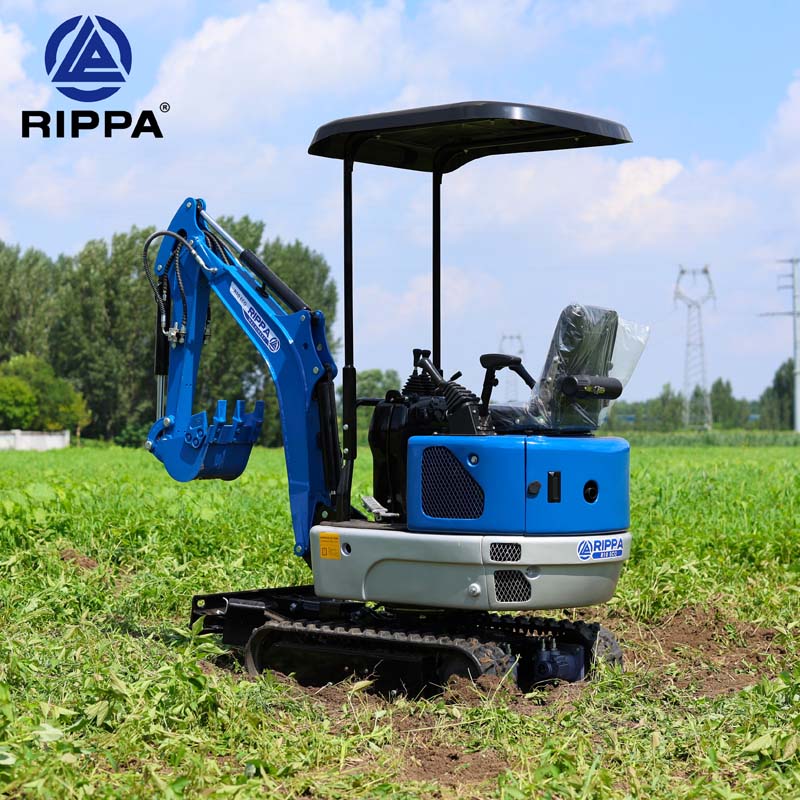

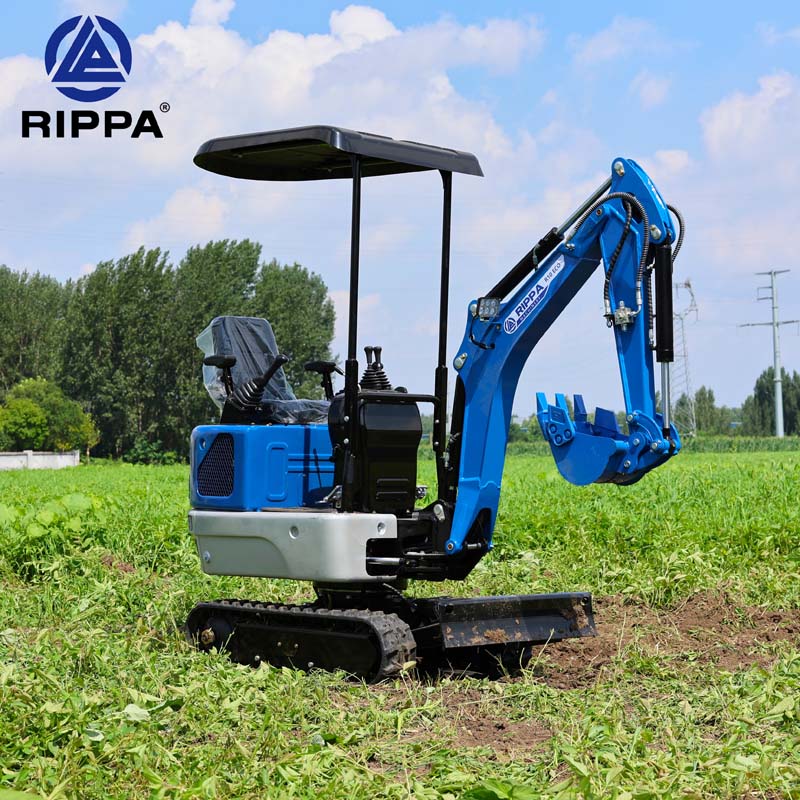

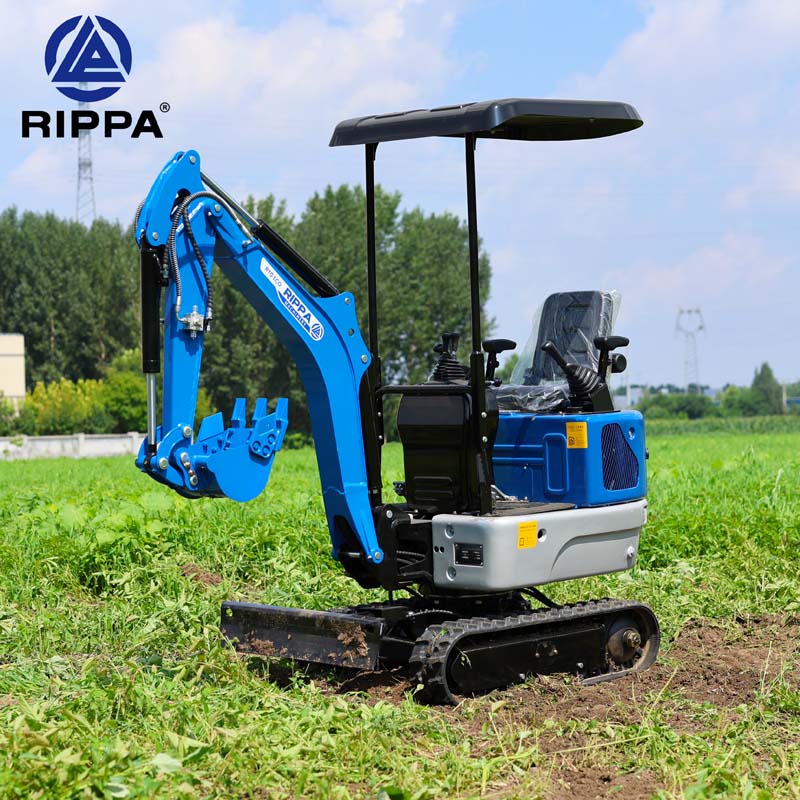

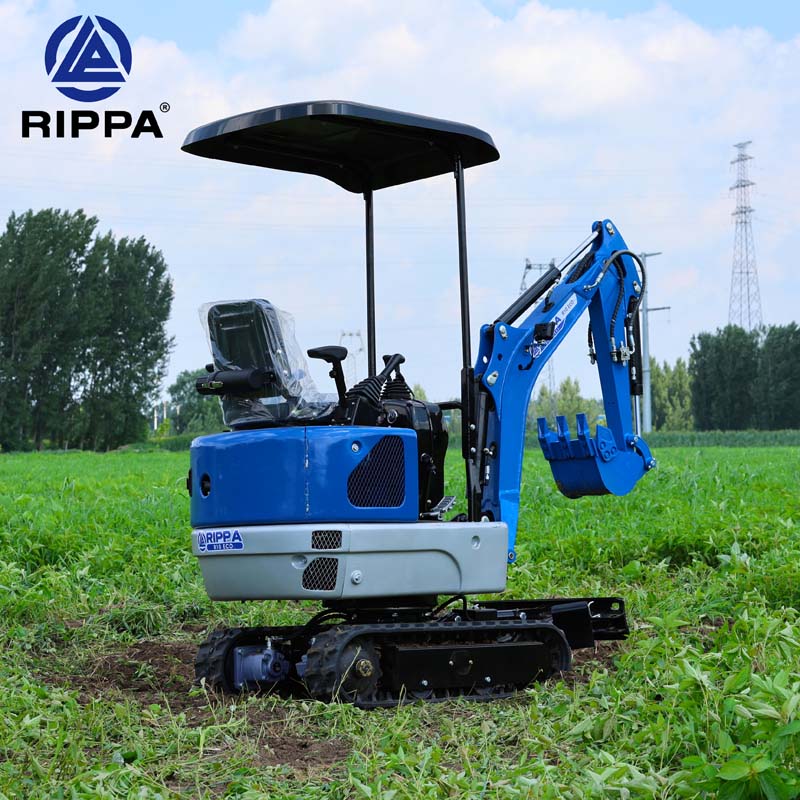

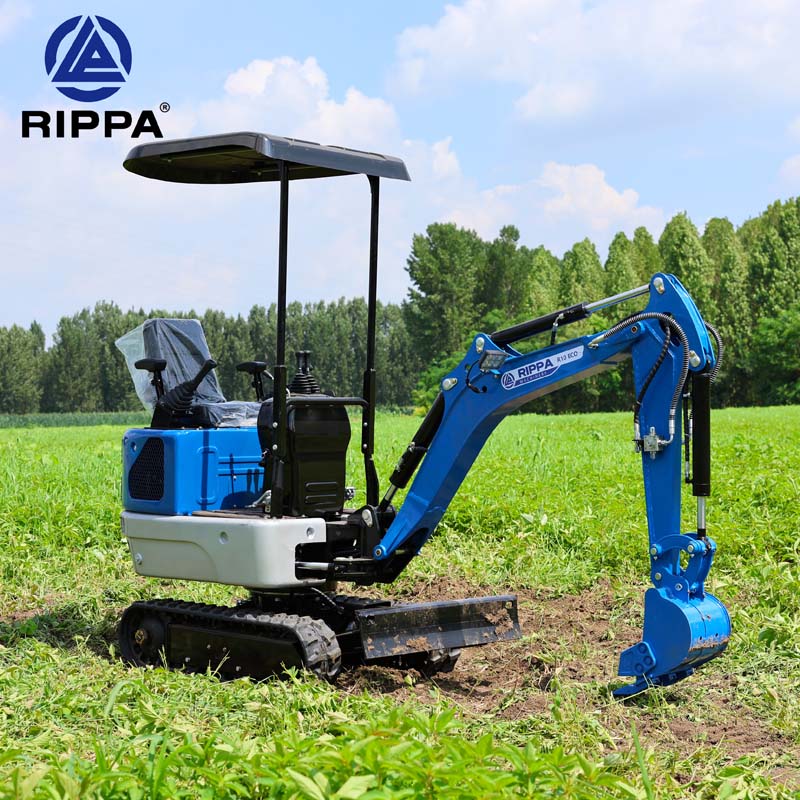

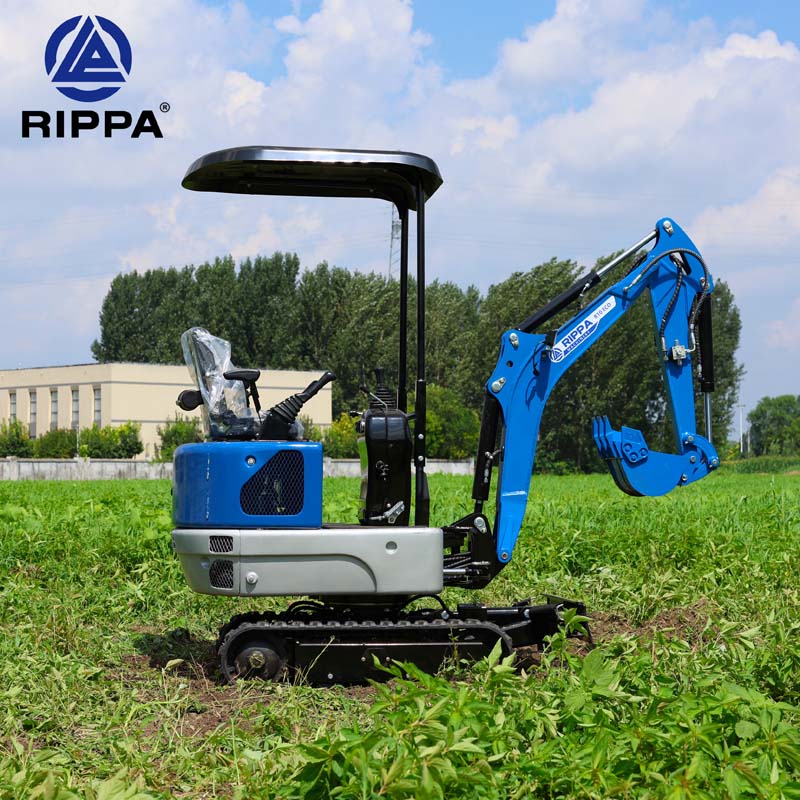

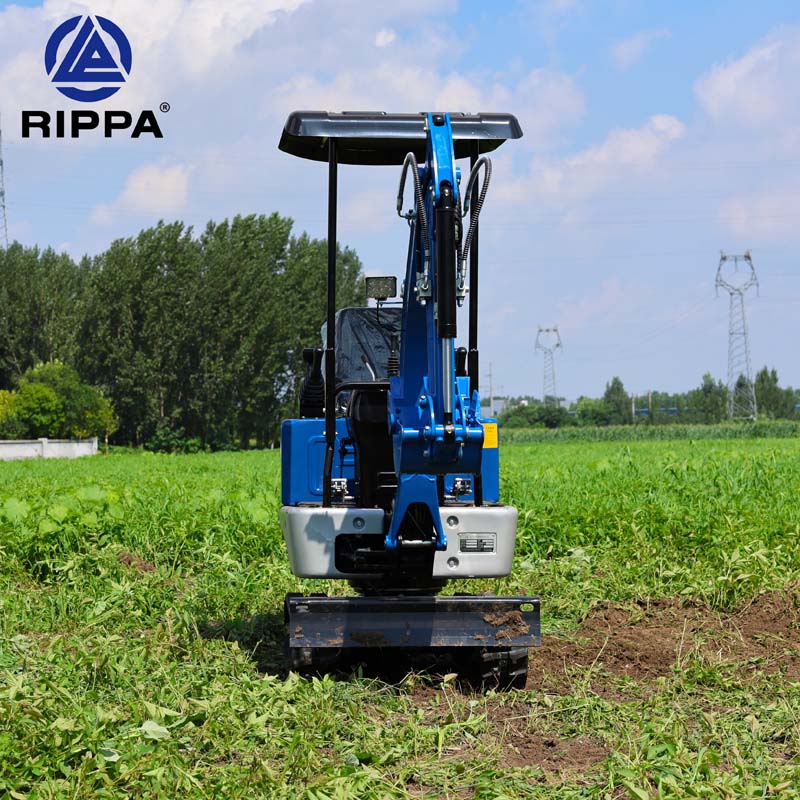

Product display

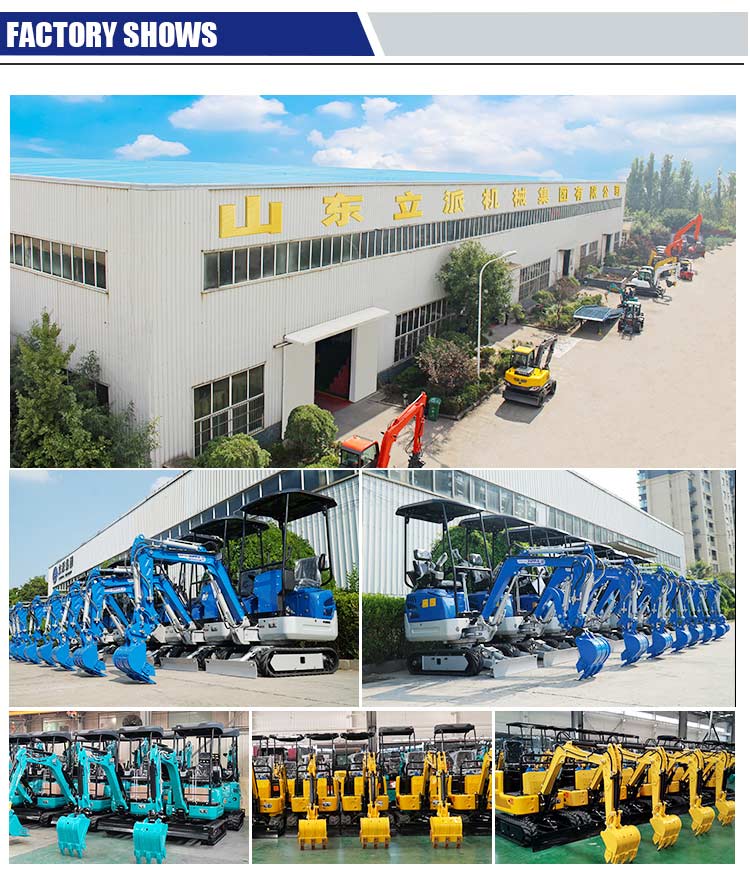

Rippa is one of the outstanding manufacturers in China, providing high quality while offering competitive prices, embodying our core philosophy of sustainable development and leaving a positive mark on development. Looking to the future, we will continue to provide innovative products and solutions that advance progress in today's world.
