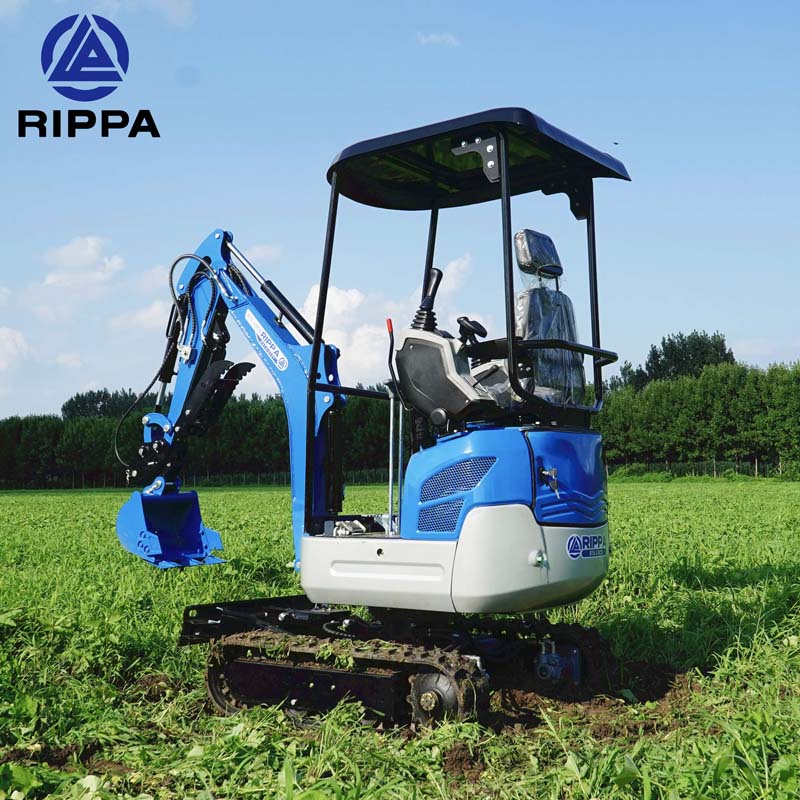

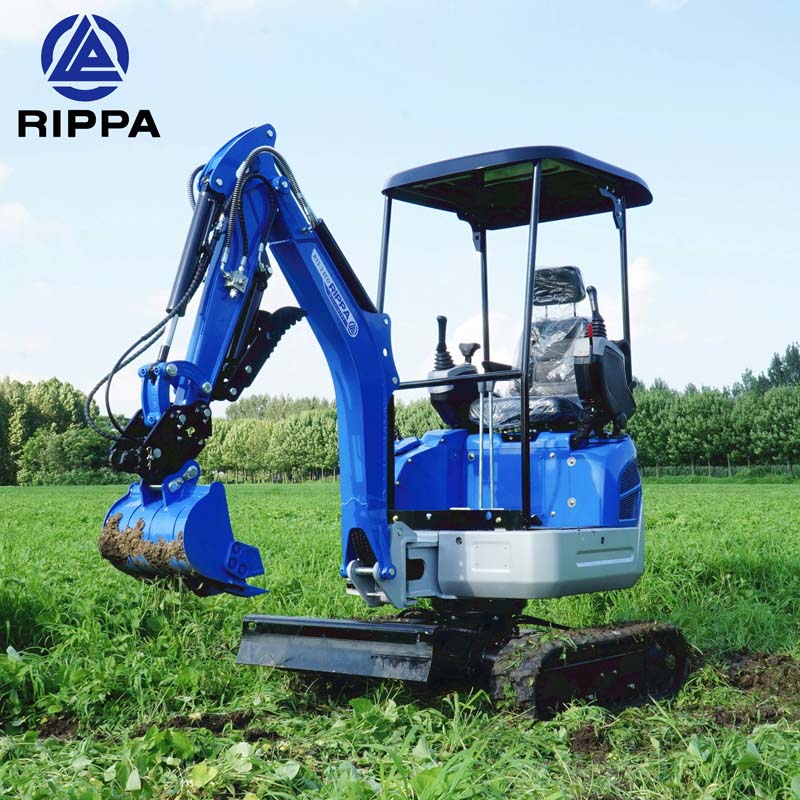

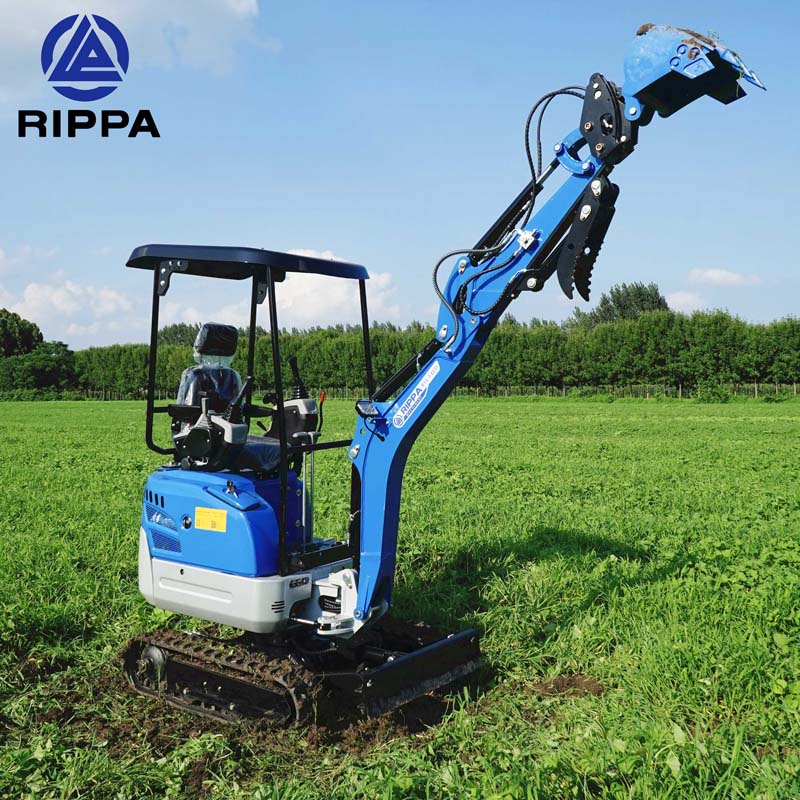

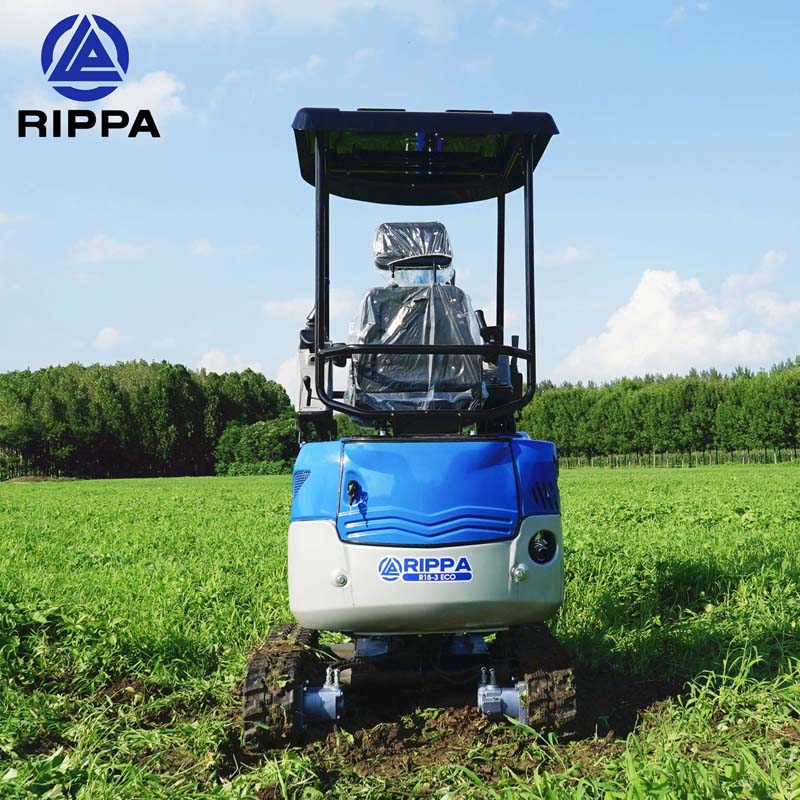

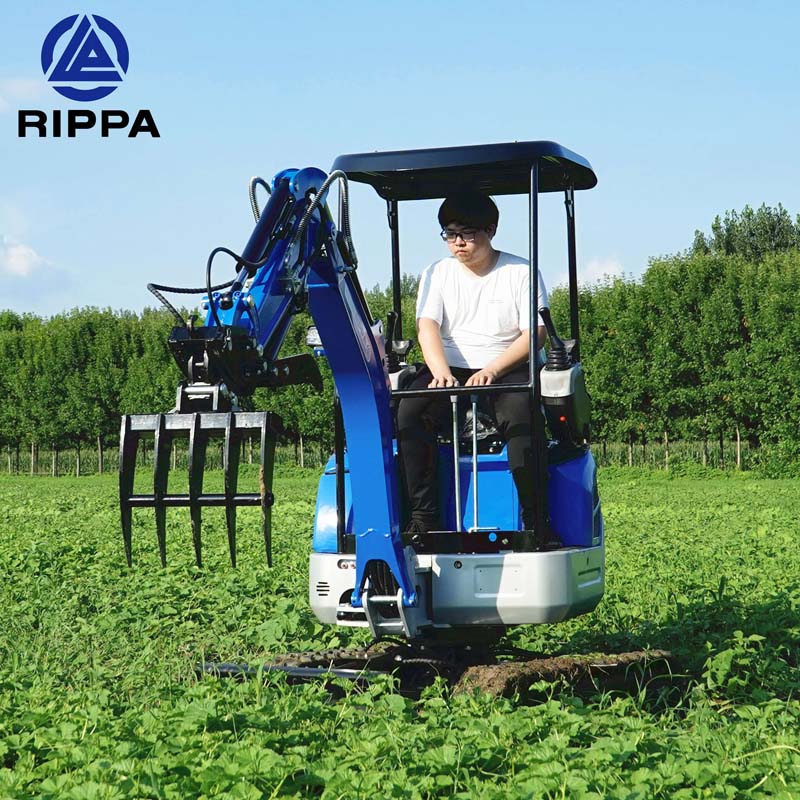

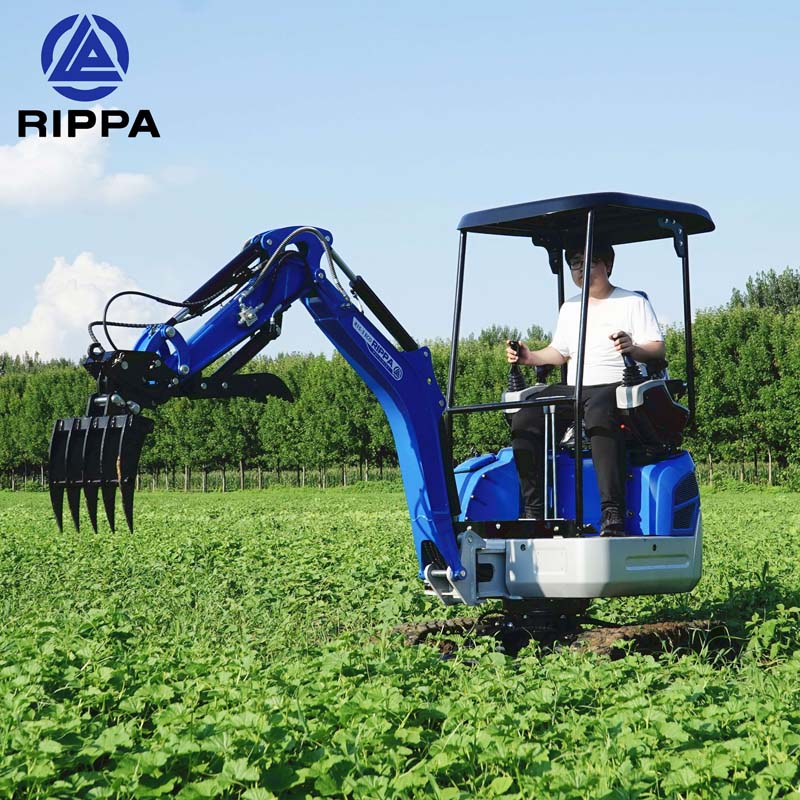

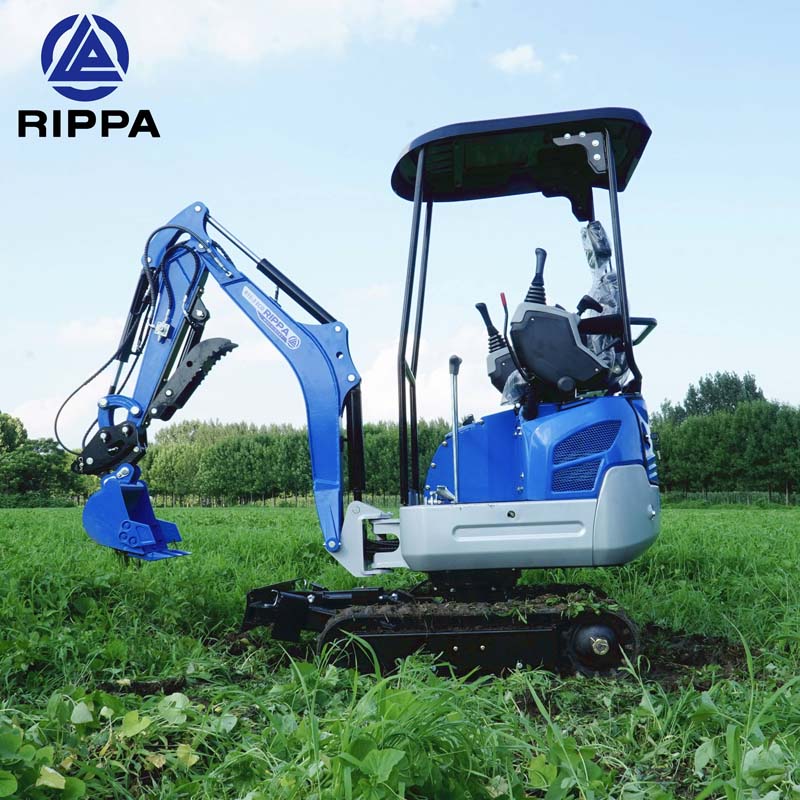

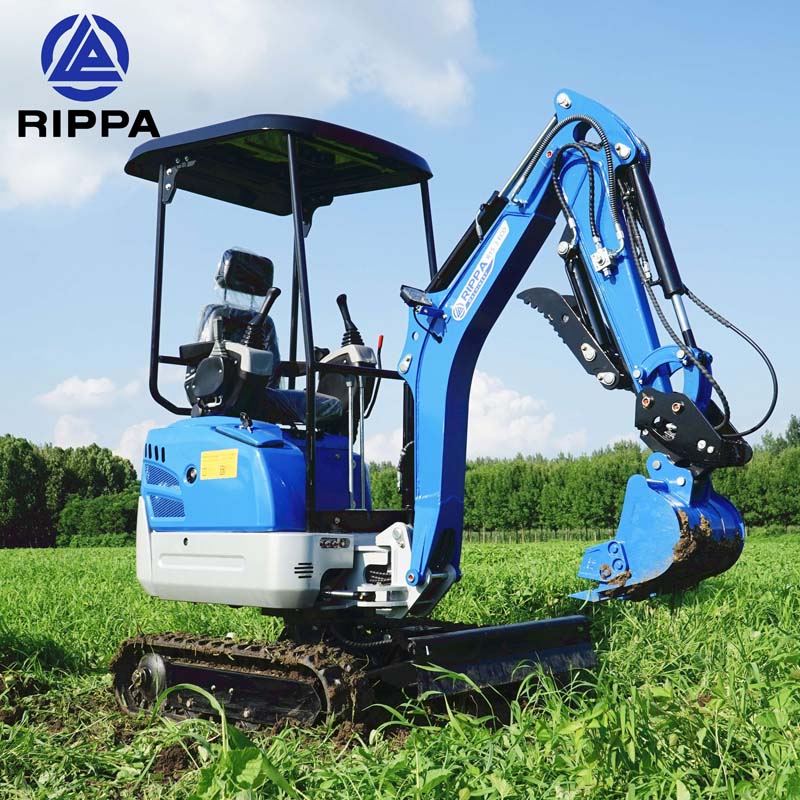

R15 mini excavator

one. Excellent basic characteristics:

Kubota Engine: It uses Kubota D722 diesel engine which provides 10.2kW of power while maintaining low fuel consumption, low vibration and low noise with environmental performance in mind.

Compact Design: High performance is achieved through a compact design, allowing flexible operation in a variety of environments.

two. Efficient hydraulic system:

Large flow main pump: The maximum flow rate reaches 21.6L/min, which ensures high efficiency and stable operation.

High trigger pressure: The maximum trigger pressure is 20MPa, which ensures high digging force and performance.

three. Flexible work:

Pilot mode: Pilot lock design prevents accidental contact and improves operating safety. It is equipped with an oil source valve and an accumulator for faster response.

Accessory Equipment Replacement Mode: You can easily replace hydraulic quick couplers, breakers, wood grabs and other accessory equipment by simply pressing a button, which is convenient and fast.

Four. Unique structural design:

Extendable Tracks: Track width is adjustable (890mm - 1190mm) to adapt to different operating conditions and improve stability and flotation.

Lateral Moving Boom: The boom can be moved laterally to increase operating range and improve flexibility.

Telescopic boom: The boom design ensures stability and durability during transportation and operation.

five. Comfortable operation:

Instrument Panel: Built-in multi-function instrument panel, which can display parameters such as speed, fuel volume, oil pressure, voltage and water temperature, making it easier to monitor the vehicle's status in real time.

Optimized Cab: The cab is intelligently designed and equipped with an easy-to-remove top to facilitate operation in confined spaces; The seats are comfortable and the workspace is spacious.

six. Efficient mining capabilities:

Large digging force: The maximum digging force reaches 10.4KN, which can meet various digging needs.

Large excavation range: maximum excavation radius is 3274 mm, maximum excavation depth is 1807 mm, maximum excavation height is 3046 mm. Suitable for various working conditions.

Seven. Reliability and durability:

High-quality materials: The design is made of high-quality materials, strong and durable, ensuring stability and reliability for long-term use.

Easy Maintenance: The hinged cover makes inspection and maintenance easy, reducing maintenance costs.

With its superior performance, flexible use, unique design, comfortable operation, efficient excavation capability and reliable quality, R15 mini excavator has become an outstanding product in the export trade and can meet the needs of various users.
