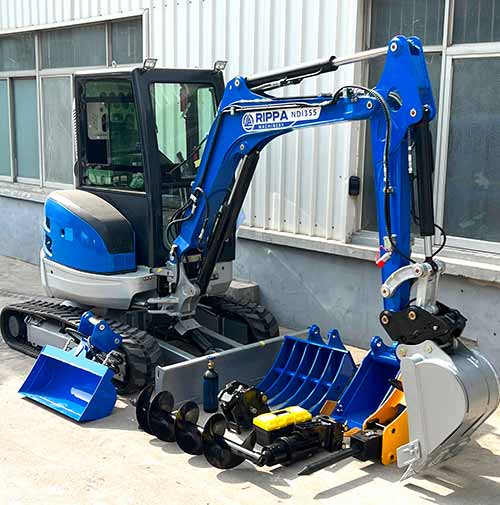

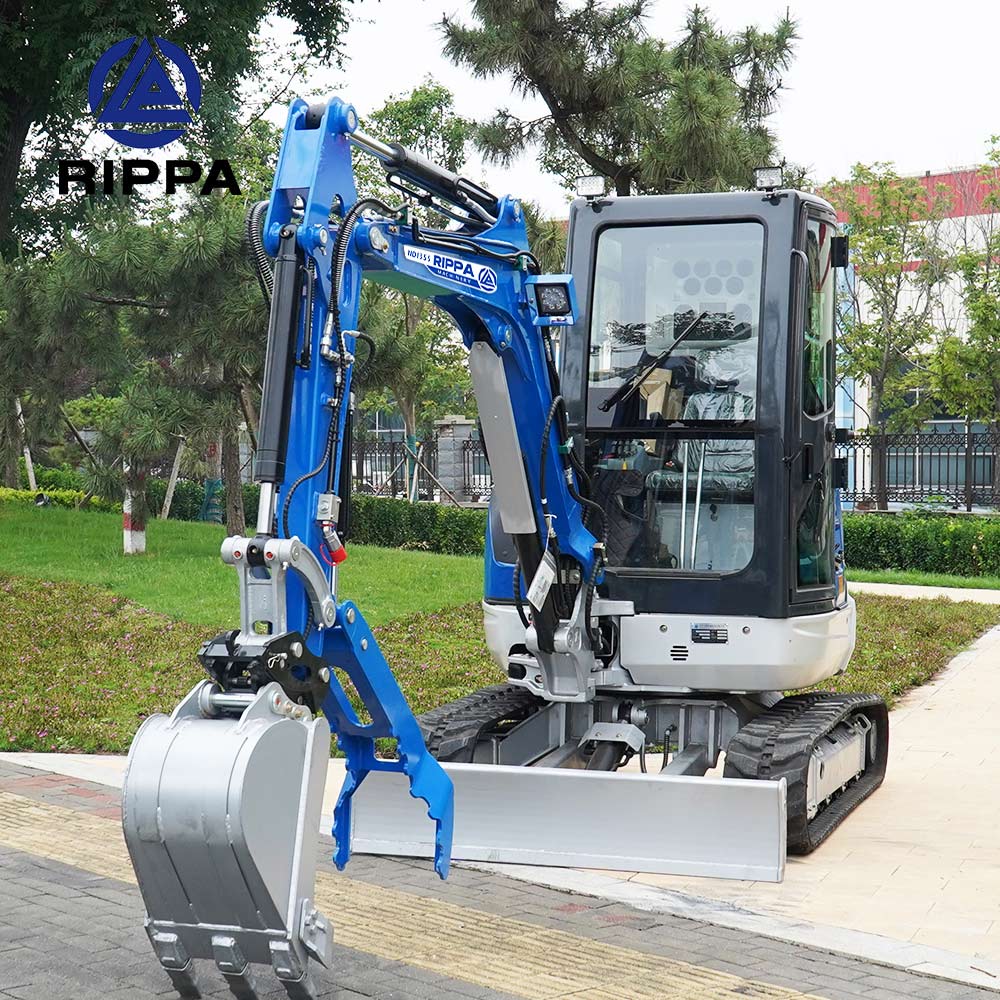

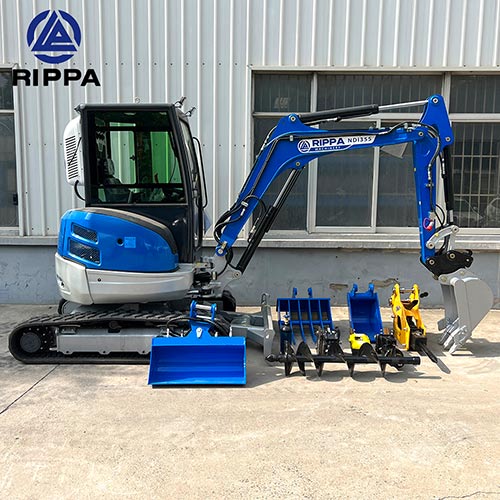

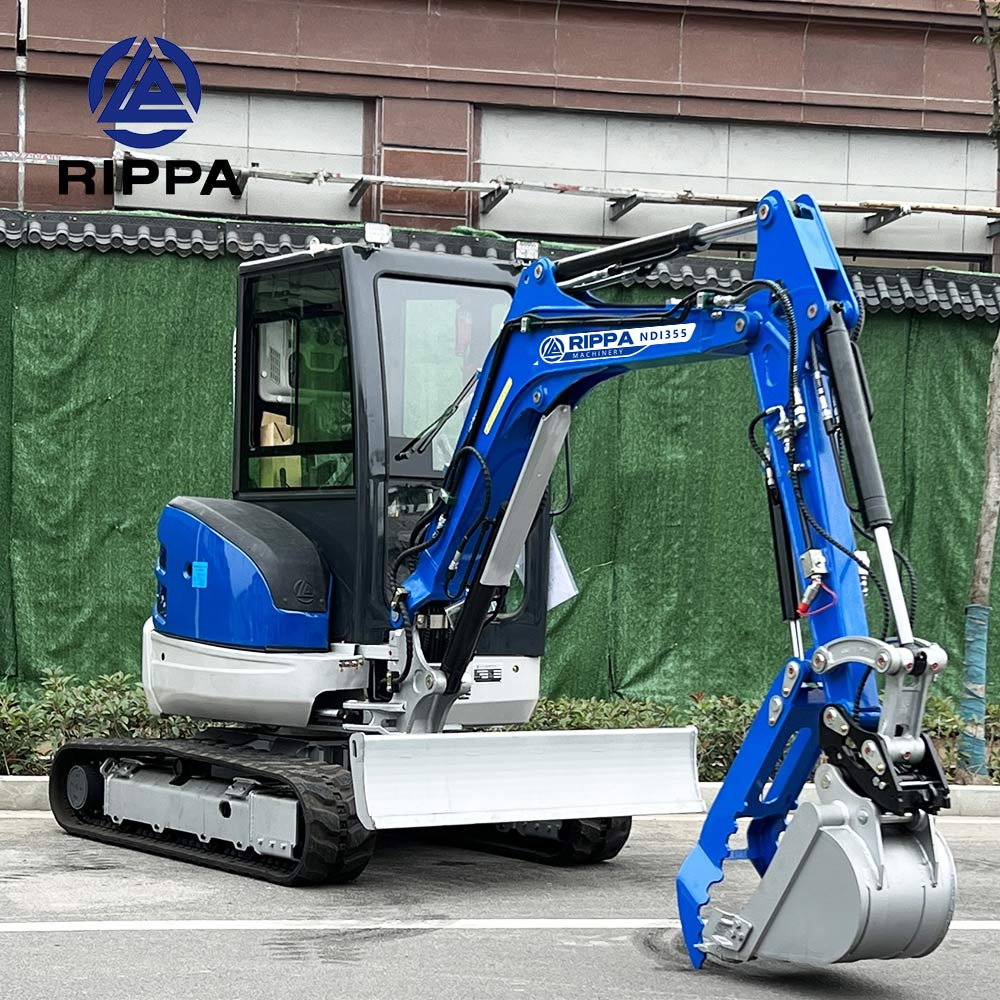

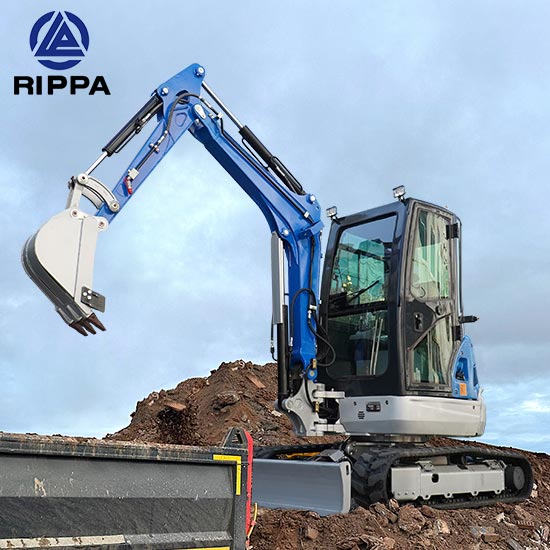

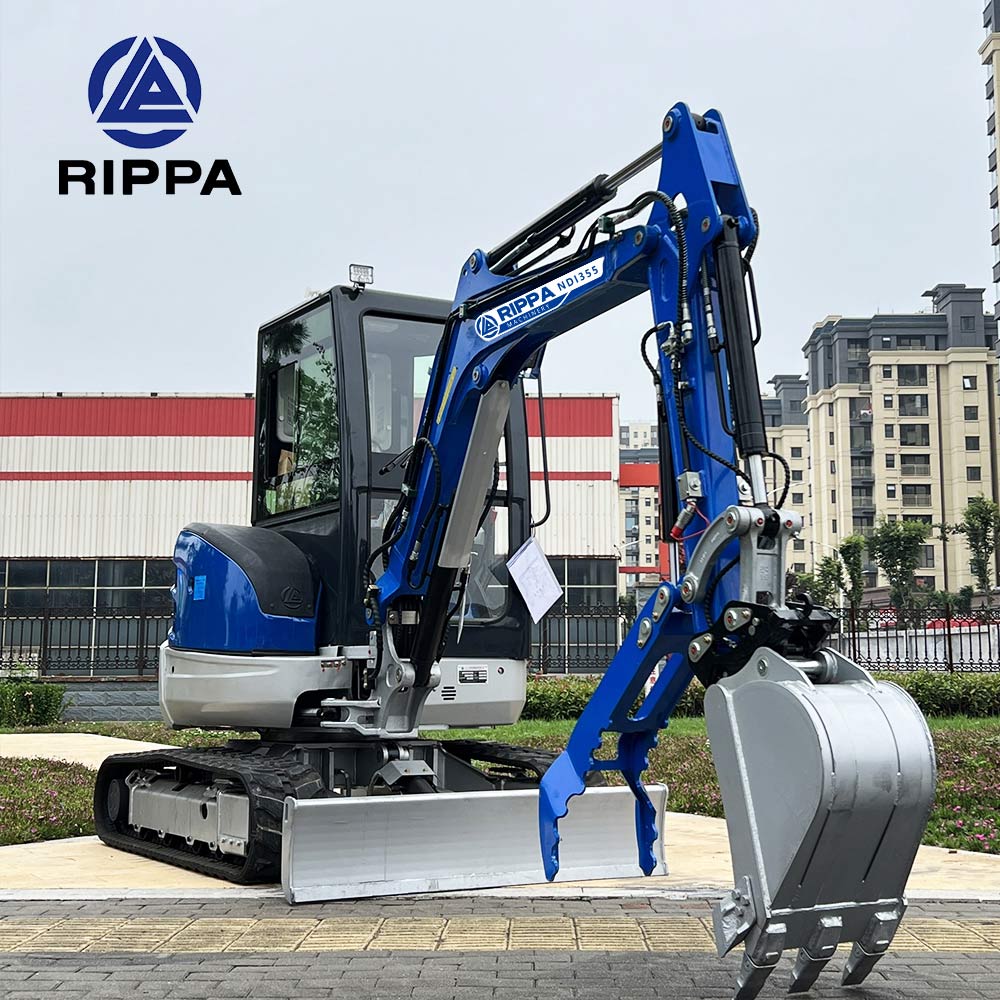

Mini excavator 2.5t

The NDI355 excavator is the largest tailless excavator among the small excavators produced by the company independently. It was well received by the market after its launch.

Product Parameters

Operating weight: 3480 kg

Bucket volume: 0.08m³

Engine model: Kubota D1703

Rated power: 18.2 kW

Transport length: 4522 mm

Transport width: 1550 mm

Travel speed (low speed/high speed): 2.09/3.23 km/h.

Product Features

The basis of the excavator's power system is the diesel engine. Its function is to burn the supplied fuel and convert thermal energy into mechanical energy, as well as to enable the excavator to move and supply power through the hydraulic transmission system. The excavator power system consists of the following subsystems: cooling system, air intake system, exhaust system, fuel system, lubrication, electrical system, shock absorption system.

Stamping integrated shield

The rear guard and seat panel protector are covered with thermal insulating foam, which insulates heat conduction in the engine compartment and prevents heat transfer into the cabin, enhancing the customer's driving experience.

1. Divided heatsink, heat dissipation area increased by 30%; The 2L large capacity auxiliary kettle is 25% larger than other models.

2. The upper, lower, left and right heat shields of the radiator are completely surrounded by thermal insulation treatment, effectively isolating the backflow of hot air in the engine compartment, ensuring stable engine operation for a long time and improving engine operating efficiency.

The air filter uses a straight head Yanmar air filter element, and the intake pipe is equipped with a 50mm diameter extended rubber hose that goes directly to the radiator intake to ensure the engine receives sufficient cooling air, high oxygen density and complete fuel combustion. The fuel effectively improves engine performance and is more economical. Opening the back cover reveals an air filter element that is convenient for customers to maintain and replace.

The cylinder diameter is 180mm, and the muffler is enlarged to achieve noise reduction effect; The exhaust manifold, soft joints, muffler and exhaust pipe are covered with insulating cotton, which has good wrapping properties and prevents workers from being burned.

The NDI355 Kubota D1703 adds a remote oil filter configuration to make daily service easier for customers.

Each vehicle is equipped with 5 Kubota U30 shock absorbers, which can effectively reduce excavator vibration and ensure operating comfort and service life of various accessories.

The electrical fuse box is mounted in the seat bracket and can be seen when the seat cover is opened, making it easy to inspect and service. The relay fuse can protect the safety of the entire excavator wiring harness and prevent dangerous situations such as excavator fire caused by a faulty wiring harness.

The engine wiring harness and seat wiring harness are connected with aircraft butt joints, making it easy to service customers' wiring harnesses. The pilot oil line of the work watch is segmented by a docking block, which eliminates the need for the customer to disassemble the oil line during maintenance.

The entire diesel pipeline of the engine is protected by snake skin hose, which can prevent diesel pipeline wear and oil leakage, and prolong the service life of the fuel pipeline.

1.Original Kubota cast coupling and the same type of rocker arm with 30mm wall thickness, the mating surface is processed by machining center, which has high strength and good wear resistance.

2. Built-in wear-resistant shaft for longer service life.

3. Four lubrication seal rings are used on the end surface of the connecting rod, which can effectively improve the lubrication effect of the connecting rod rocker arm and ensure the normal operation of the excavator for a long time.

The pin shaft and pin bushing of the whole car are made of 40 chromium material, which is subjected to rough machining, hardening, fine grinding, galvanizing, wear-resistant and corrosion-resistant.

The end of the pin at the junction is filled with oil.

The pin bushing is equipped with a wear-resistant lubrication channel bushing to increase the normal service life of the vehicle.

The whole car is equipped with a set of soft rubber clamps, which effectively protects the oil pipe from wear and tear and has a beautiful appearance.
