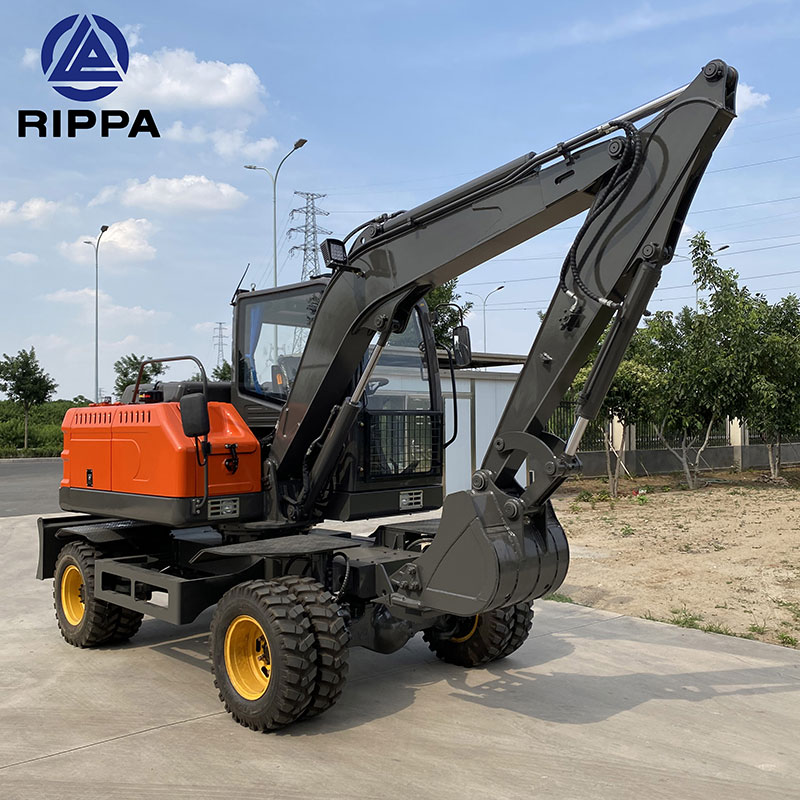

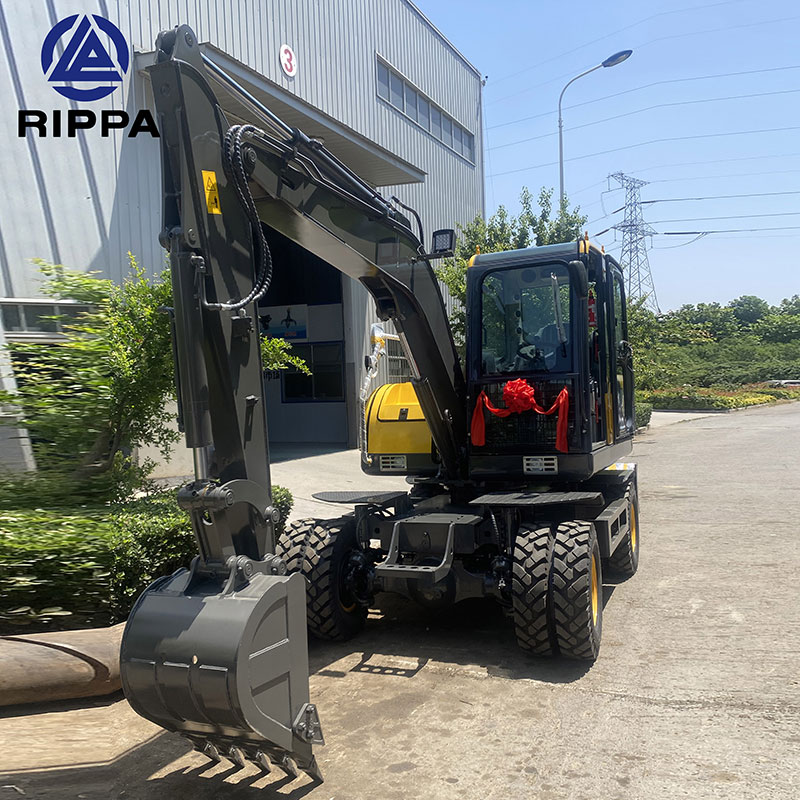

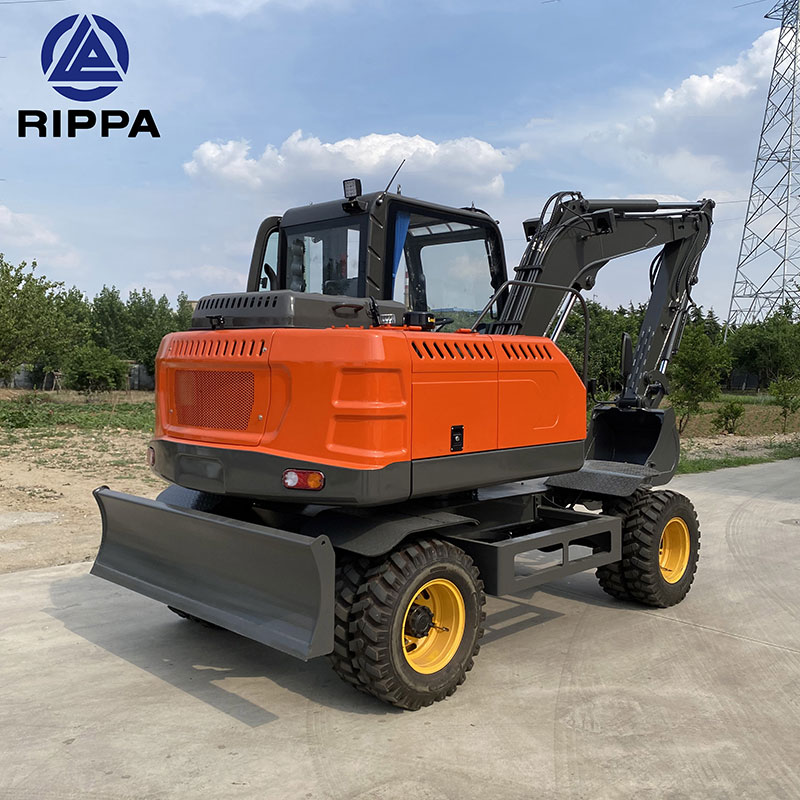

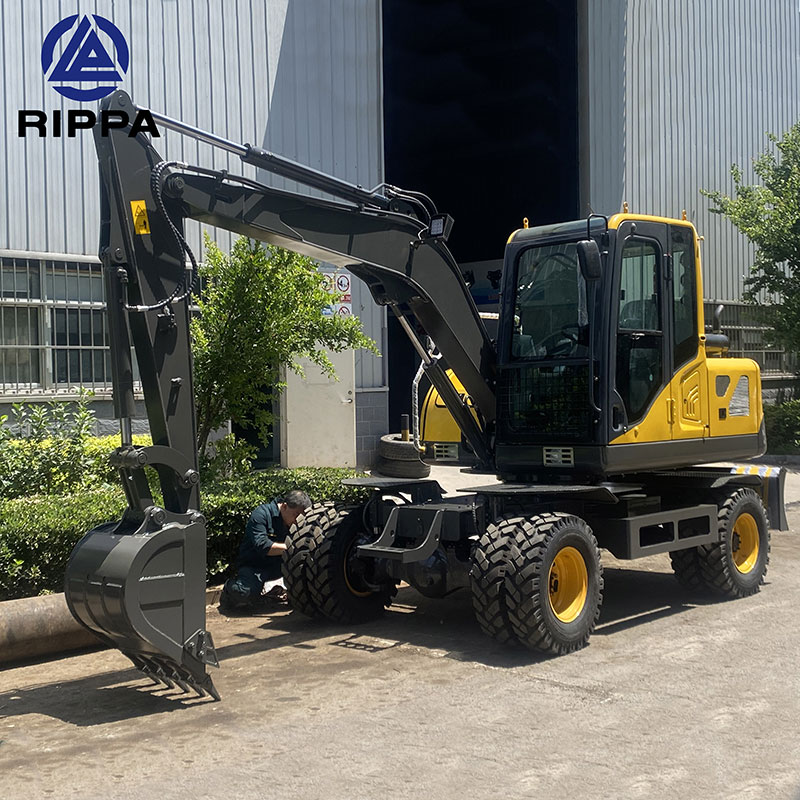

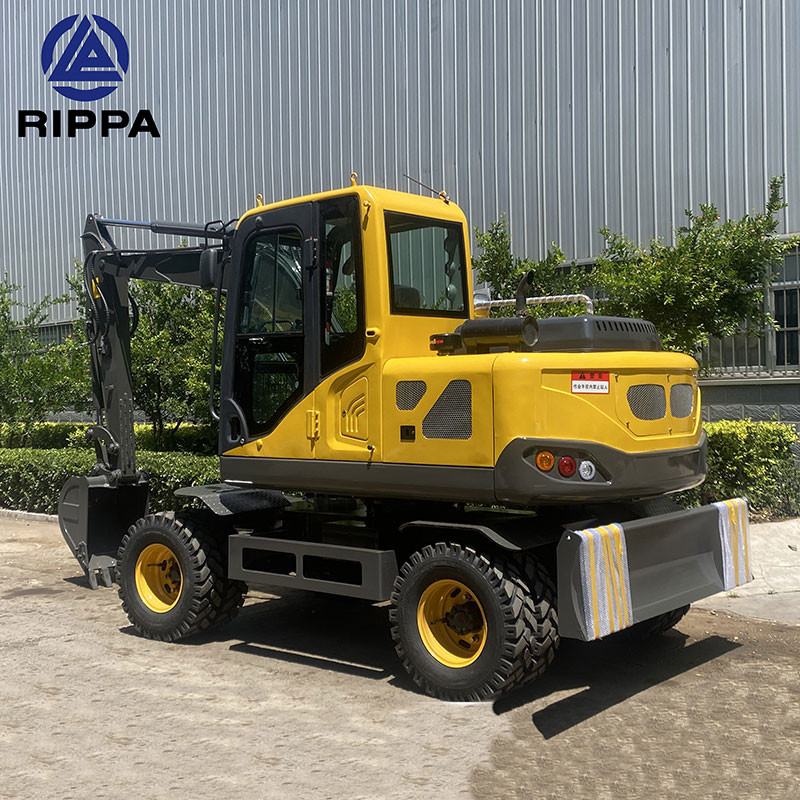

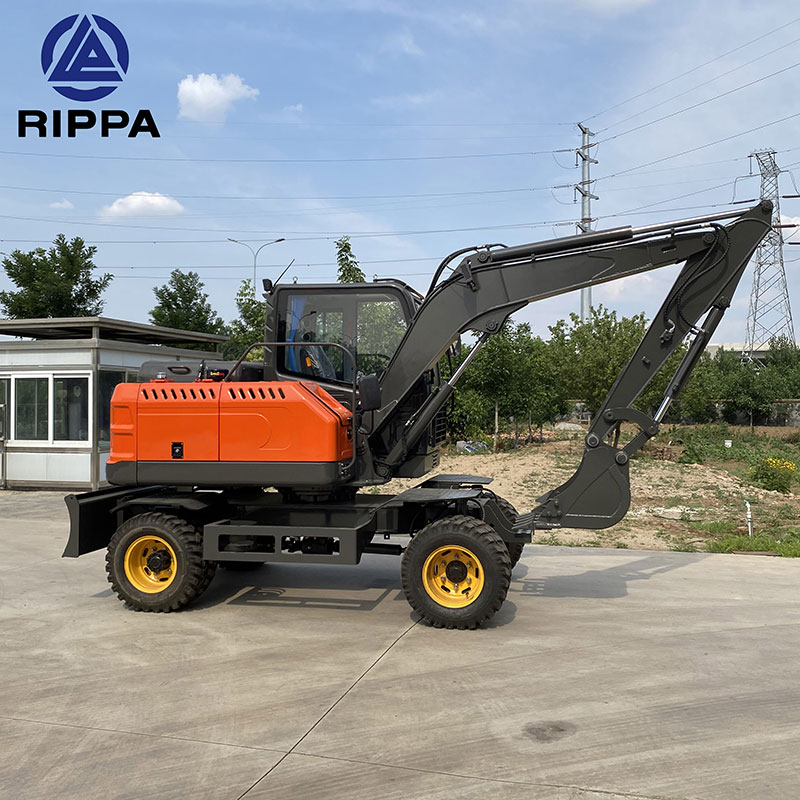

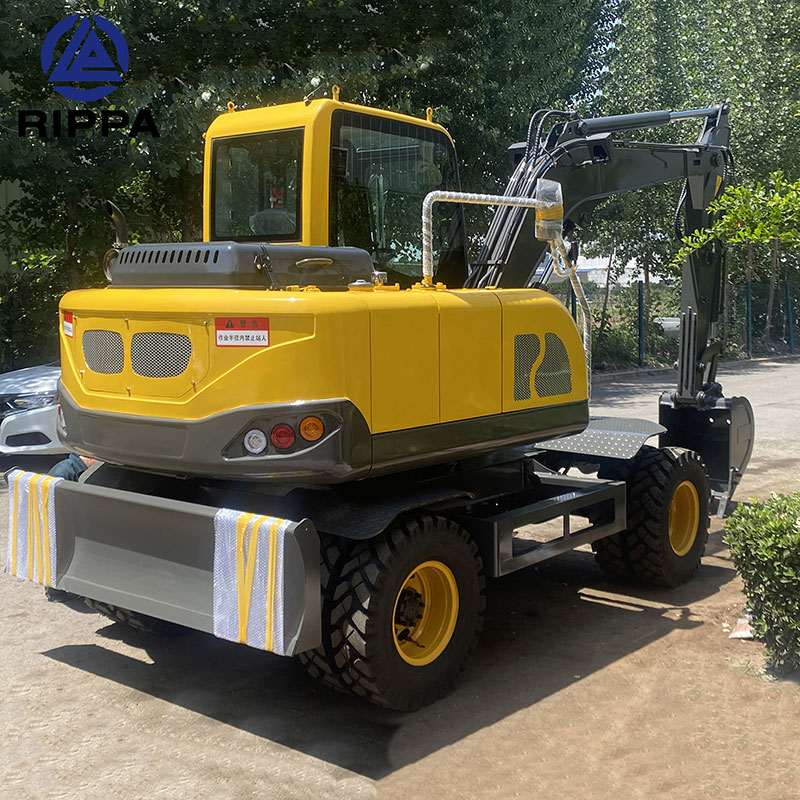

Wheel excavator 6 tons
Product advantages:
ODM，OEM，Can be customized
The excavators are CE marked throughout the entire range.
Product Certificate: CE/ISO/EURO5/EPA/SGS/ECM
Small excavators meet Euro 5 and EPA emission standards.
Wholesale orders are available at discounted prices.
Manufacturers have stocks and provide fast delivery.
Customer support staff are available online 24 hours a day.
Fill out the information, get offers, become our agent!
Key Features:
Stability and Reliability: Scientifically designed design with ideal configuration, all-wheel drive, suitable for all types of terrain.
Excavator | Technical Specifications
| Machine parameters | Meaning |
|---|---|
| Total weight | 6000 kg |
| Shipping length | 6246 mm |
| Transport height | 2800 mm |
| Transport width | 2200 mm |
| Distance between wheel centers | 2400 mm |
| Counterweight clearance | 1035 mm |
| Number of tires | 750-16 |
| Boom length | 3350 mm |
| Handle length | 1900 mm |
| Operating range | Meaning |
|---|---|
| Maximum digging height | 6550 mm |
| Maximum unloading height | 4500 mm |
| Maximum digging depth | 3380 mm |
| Maximum digging radius | 6590 mm |
| Maximum blade lift height | 300 mm |
| Maximum blade digging depth | 100 mm |
User-Centric: Carefully designed with versatility to enable you to efficiently perform a variety of tasks in any work environment.
| Power system | Meaning |
|---|---|
| Engine model | Hsinchai |
| Rated power | 48 kW |
| Cooling system | Water-cooled, turbocharged |
| Hydraulic system | Meaning |
|---|---|
| Working pressure | 22 MPa |
| Main pump | Gear pump SGP1A2XFZH9, Japan Shimadzu |
| Hydraulic valve | Imported from Korea |
| System type | Load Sensing System |
| Performance Options | Meaning |
|---|---|
| Bucket Volume (SAE) | 0.36 m³ |
| Lifting ability | 30° |
| Maximum digging force | 8200 N |
| Travel speed | 35 km/h |
| Block rotation speed | 9-11 rpm |
| Hydraulic oil volume | 90 l |
| Fuel tank volume | 120 l |
| Parking brake | Air brake |
| Service brake | Air brake |
| Stabilizers | Supports (optional) |
Economical and environmentally friendly: Eco-friendly engine with the latest controller for precise control of fuel injection in real time, which ensures more complete combustion of fuel and reduces fuel consumption compared to the previous generation.
This document can be used to effectively promote 轮式60型 on the Russian market, demonstrating its key advantages and technical characteristics.
